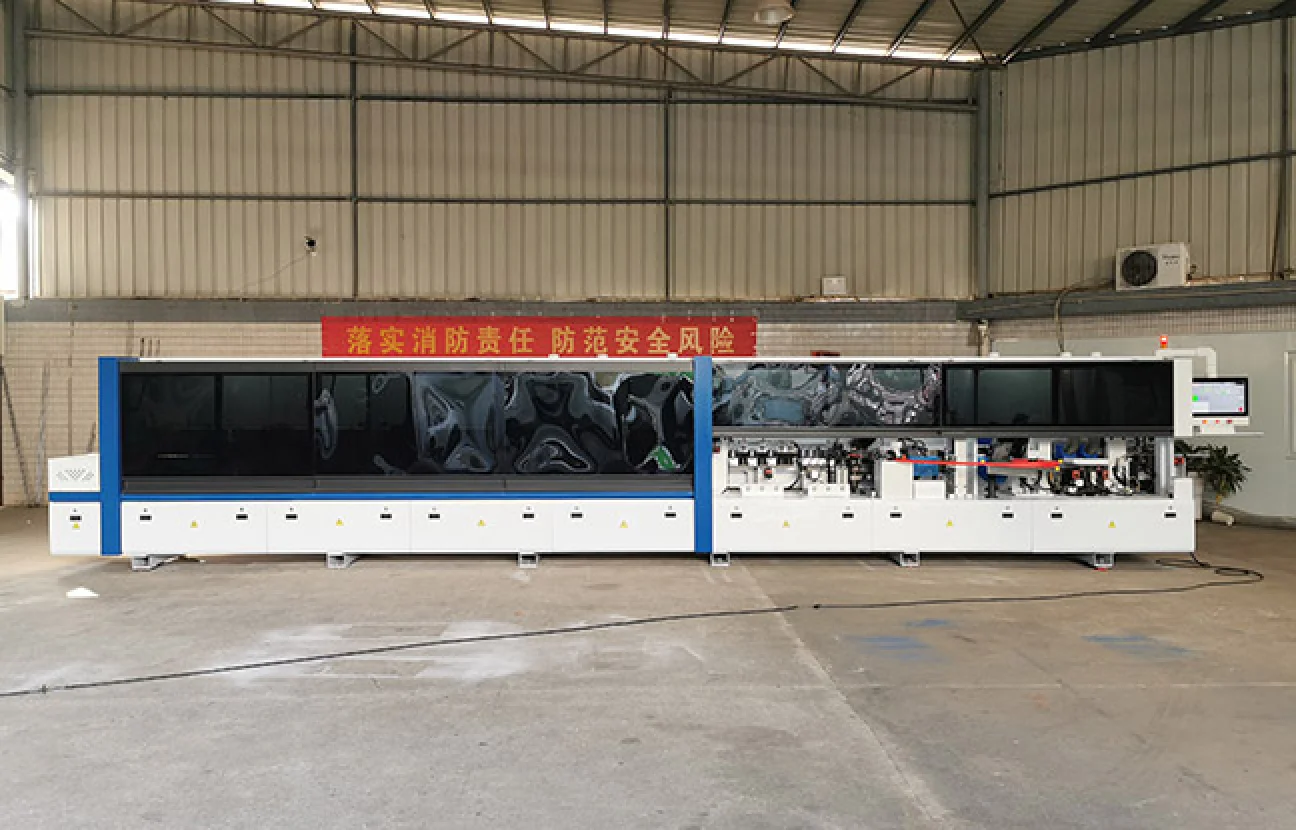

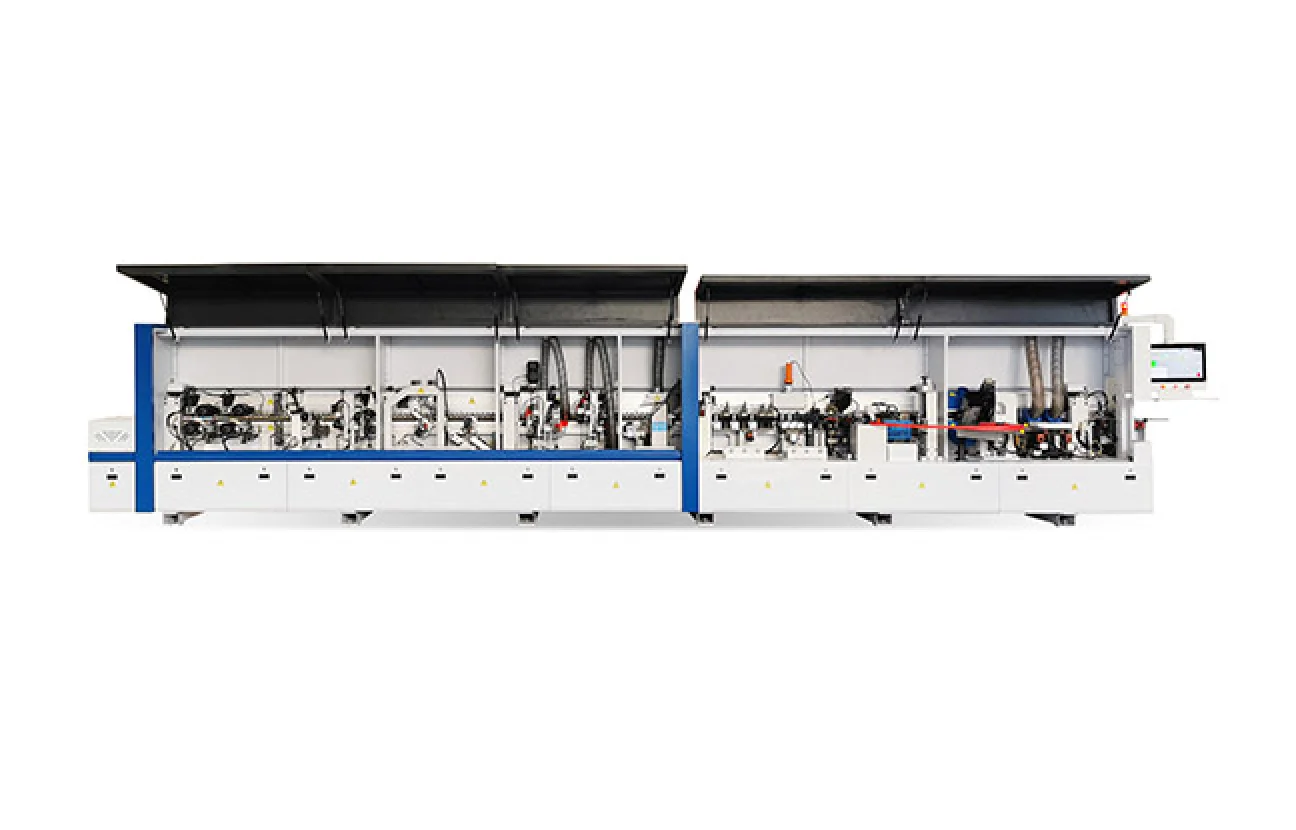

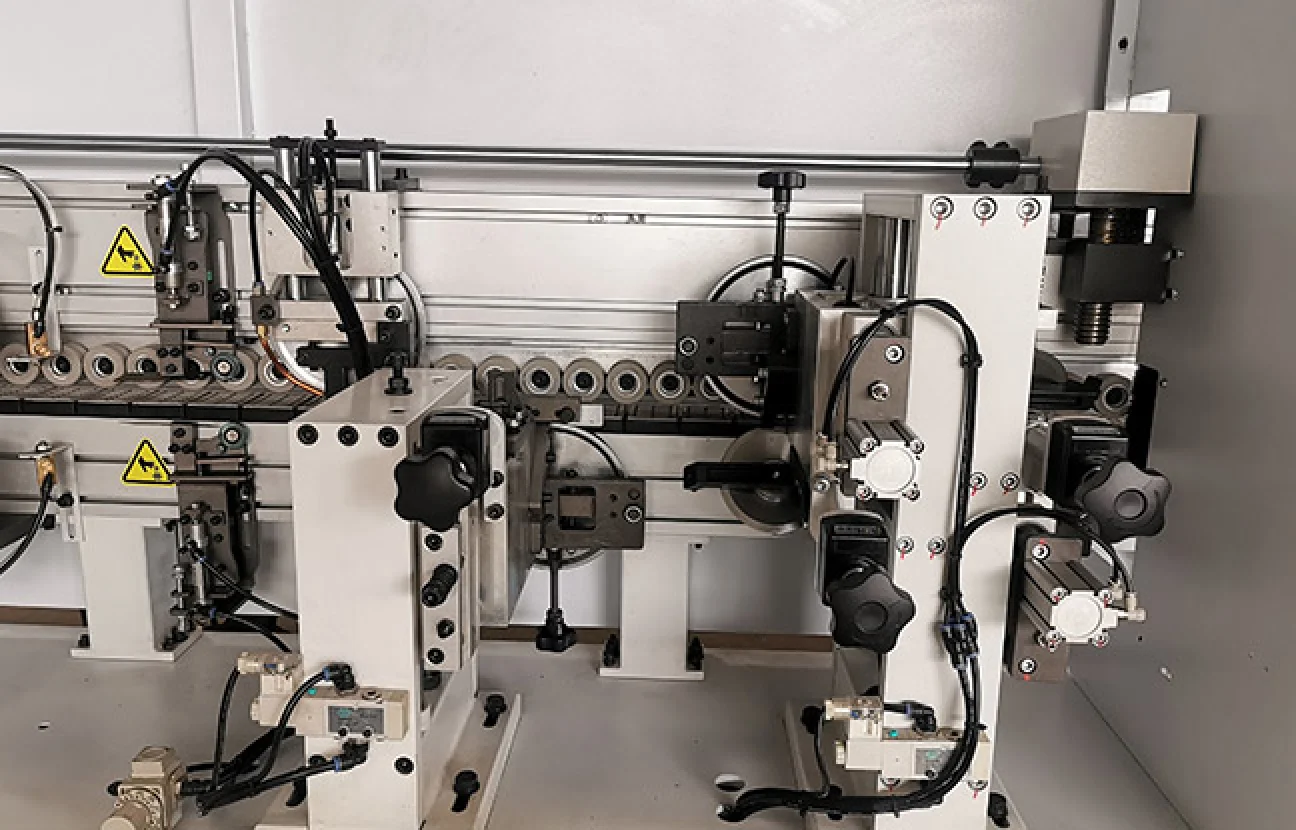

Straight and Beveling Edge Banding Machine

<div class="texts"> <p>● Edge bander model ZD450ZX can do both straight and bevel edge banding</p><p>● Edge banding machine power is 30.5kw</p><p>● Edge thickness: Straight 0.8-1.5mm, Bevel 0.4-3.0mm</p><p>● Customizable, OEM &ODM</p></div>

Straight and Beveling Edge Banding Machine
  • Straight and Beveling Edge Banding Machine
  • Straight and Beveling Edge Banding Machine
  • Straight and Beveling Edge Banding Machine
  • Straight and Beveling Edge Banding Machine
  • Straight and Beveling Edge Banding Machine
  • Straight and Beveling Edge Banding Machine

    • Straight and Beveling Edge Banding Machine

    ● Edge bander model ZD450ZX can do both straight and bevel edge banding

    ● Edge banding machine power is 30.5kw

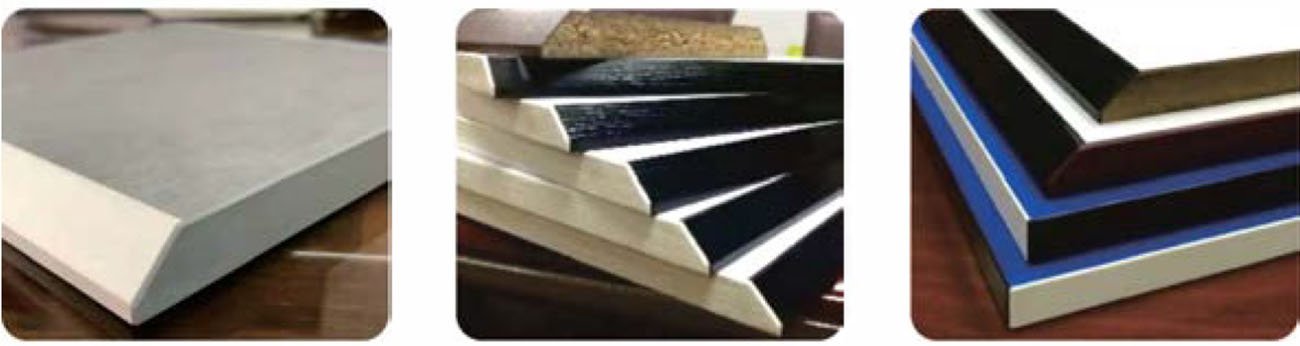

    ● Edge thickness: Straight 0.8-1.5mm, Bevel 0.4-3.0mm

    ● Customizable, OEM &ODM

    Request a Quote
    Product Details
    Edge Bander Model ZD450ZX Technical Data:

    Working pressure

    0.6MPa

    Total power

    30.5kw

    Feeding speed

    15-24m/min

    Electric lifting

    0.37kw/pc

    Panel thickness

    Straight 10-50mm

    Part beveled: straight ≥5

    ≤30°, 10-37mm

    ≤45°, 10-22mm

    ≤55°, 10-18mm

    Panel length

    Straight ≥120mm

    Bevel ≥250mm

    Panel width

    Straight ≥60mm

    Bevel ≥120mm

    Edge thickness

    Straight 0.8-1.5mm

    Bevel 0.4-3.0mm

    Overall size

    10300*900*1950mm

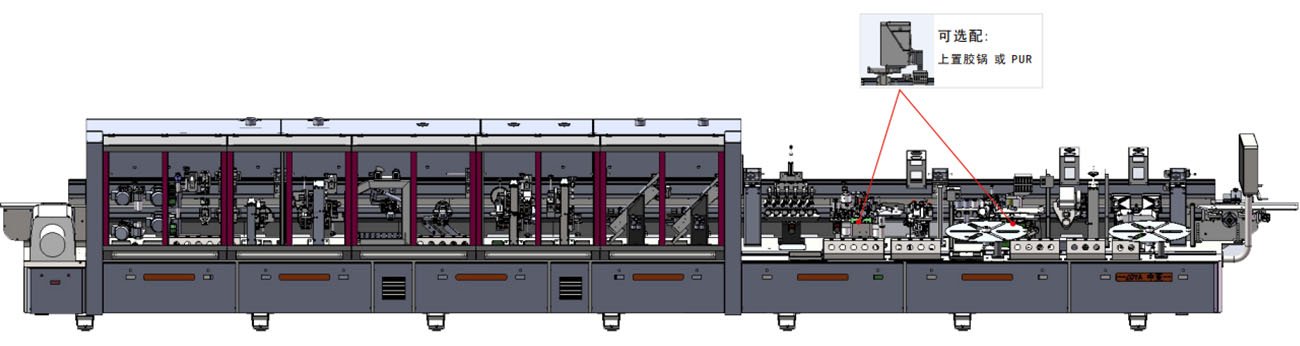

    Edge Bander Model ZD450ZX Data:
