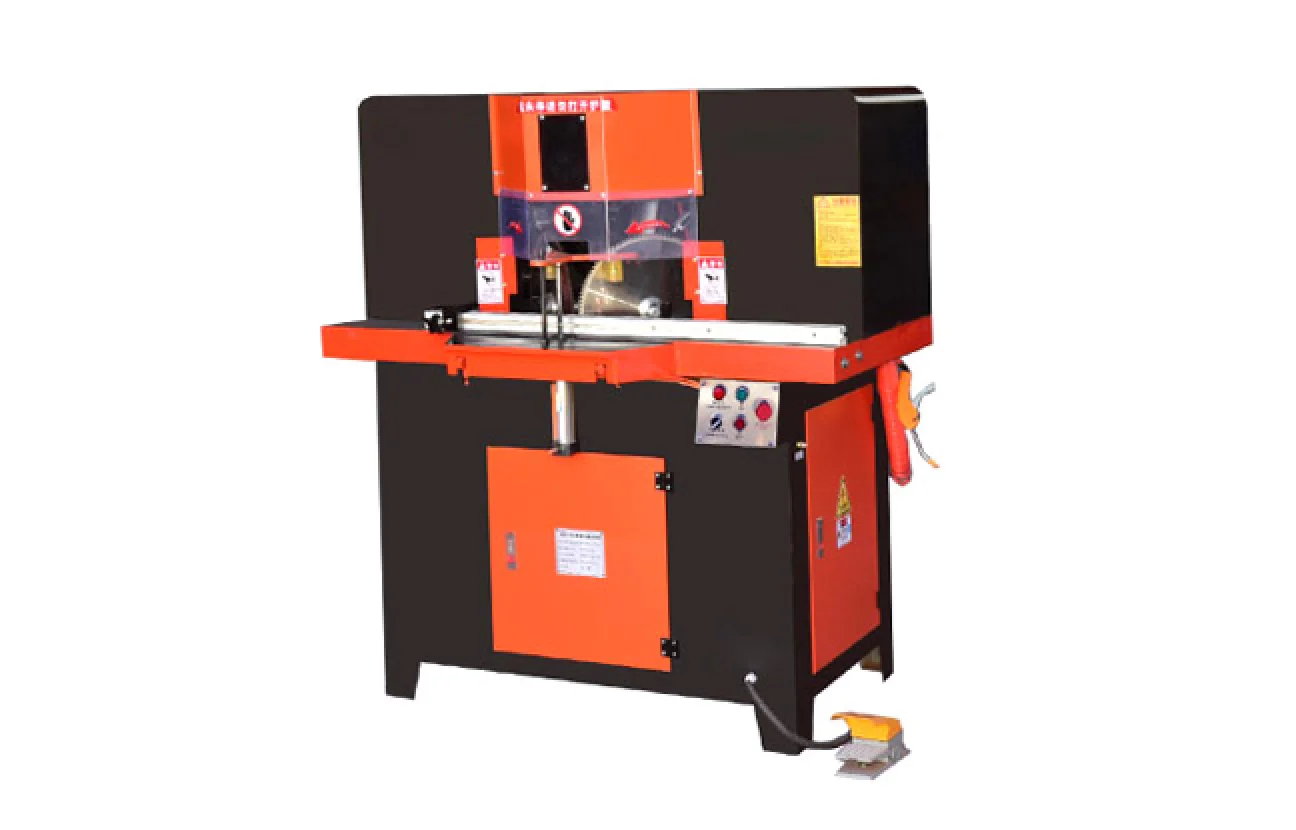

45 Degree Cutting Machine
<div class="texts"> <p>● 45 degree cutting machine is high precision</p><p>● Higher working efficiency</p><p>● Heavy duty machine body, long life service</p><p>● Customizable and OEM & ODM</p></div>
45 Degree Cutting Machine
● 45 degree cutting machine is high precision
● Higher working efficiency
● Heavy duty machine body, long life service
● Customizable and OEM & ODM
Product Details
45 Degree Cutting Machine Technical Data:
Model | MJ355 | MJ405 |
Left&Right Materials Shelf 3 Meters | Effective Positional 2.5 M | Effective Positional 2.5 M |
Cutting Angle | 45°*2 | 45°*2 |
Motor power | 2.2kw*2 | 2.2kw*2 |
Main spindle speed | 4000r/min | 4000r/min |
Working pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
Blade specification | Φ355*Φ25.4 mm*3.2*120T | Φ405*Φ25.4 mm*3.2*120T |
Machine Cutting Width | 95 MM Max | 135 MM Max |
Machine Cutting Height | 95 MM Max | 135 MM Max |
Machine Size | 1360*840*1350 MM | 1340*900*1450mm |
Machine Weight | 350 KGS | 480kgs |
Applicable material | Aluminum alloy, wood plank, foam, acrylic, plastic steel, tape, ABS, PVC, PS | |
