Hinge Boring Machine

<div class="texts"> <p>● High precision</p><p>● Higher working efficiency</p><p>● Heavy duty machine body, long life service</p><p>● Customizable and OEM & ODM</p></div>

Hinge Boring Machine
  • Hinge Boring Machine
  • Hinge Boring Machine
  • Hinge Boring Machine

    • Hinge Boring Machine

    ● High precision

    ● Higher working efficiency

    ● Heavy duty machine body, long life service

    ● Customizable and OEM & ODM

    Request a Quote
    Product Details
    Hinge Boring Machine Technical Data:

    Model

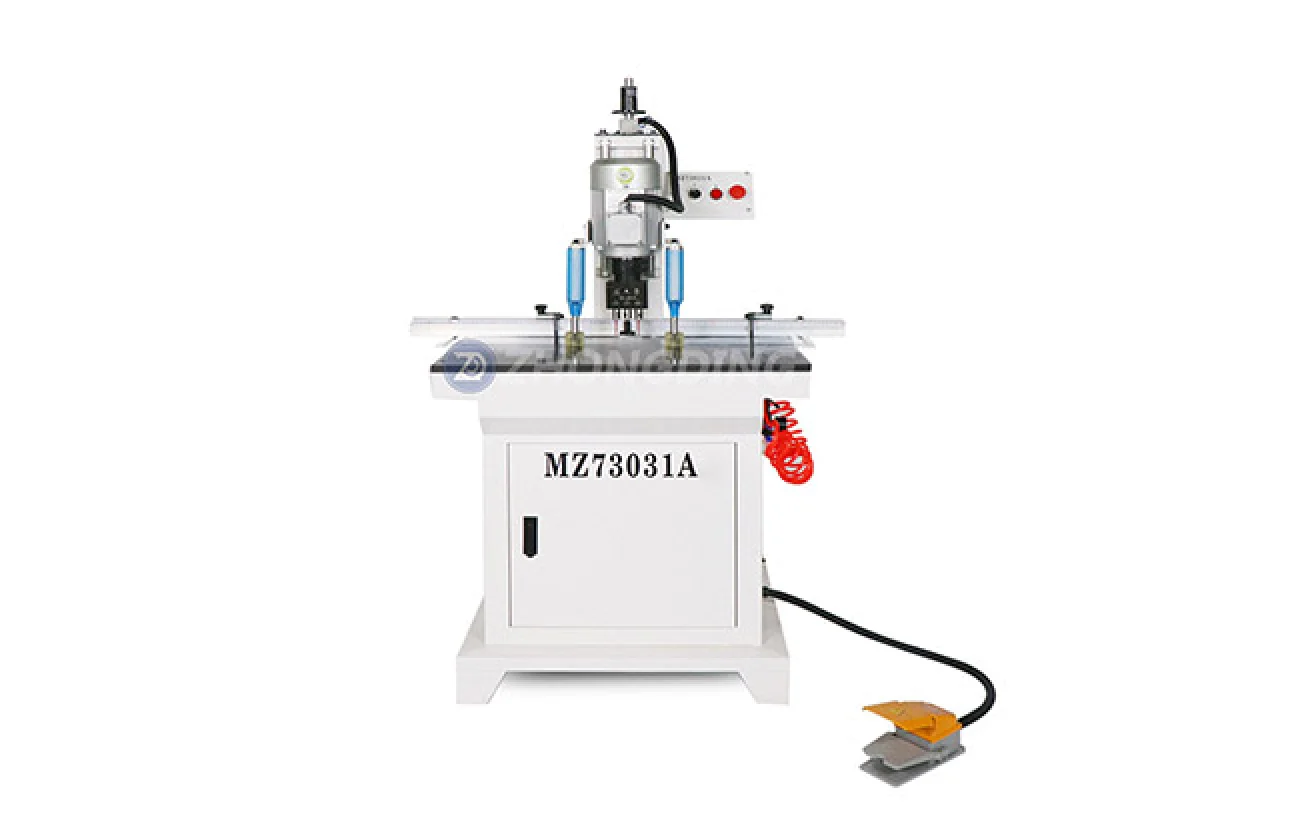

    MZ73031

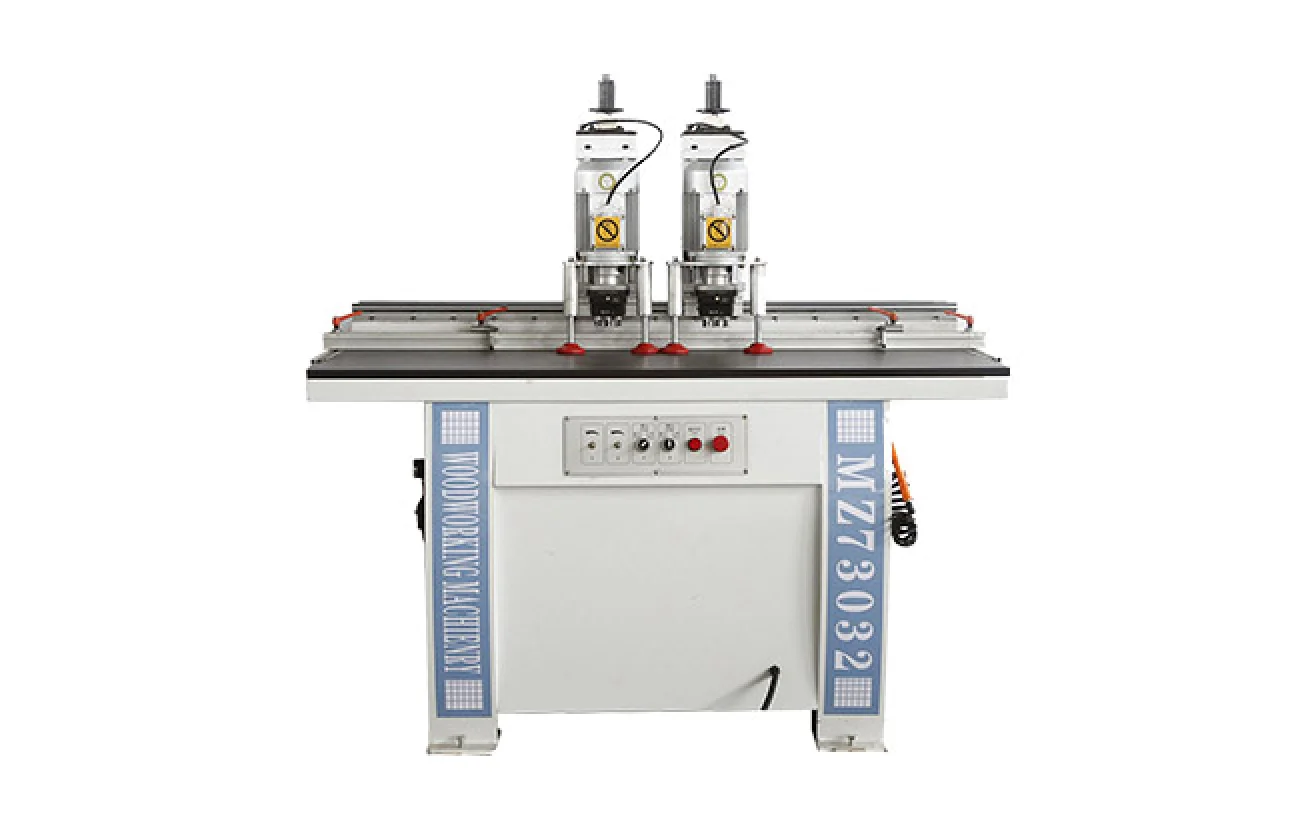

    MZ73032

    MZ73033

    Drilling diameter

    50mm

    50mm

    35mm

    Drilling depth

    60mm

    60mm

    60mm

    Numbers of spindles

    3spindle*1 heads

    3spindle*2 heads

    3spindle*3heads

    Main spindle rotation speed

    2840r/min

    2840r/min

    2840r/min

    Total Motor power

    1.5kw*1

    1.5kw*2

    1.1kw*3

    Pneumatic pressure

    0.6-0.8Mpa

    0.6-0.8Mpa

    0.6-0.8Mpa

    Overall dimension

    850*570*1700mm

    1300*1100*1700mm

    1600*1200*1700mm
