Edge Bander
<div class="texts"> <p>● Edge bander ZD450C has 7 functions</p><p>● Edge bander power IS 10.6kw</p><p>● Edge banding tape thickness is 0.4-3 mm</p><p>● Edge bander working thickness is 10-60 mm</p><p>● Customizable, OEM & ODM</p></div>

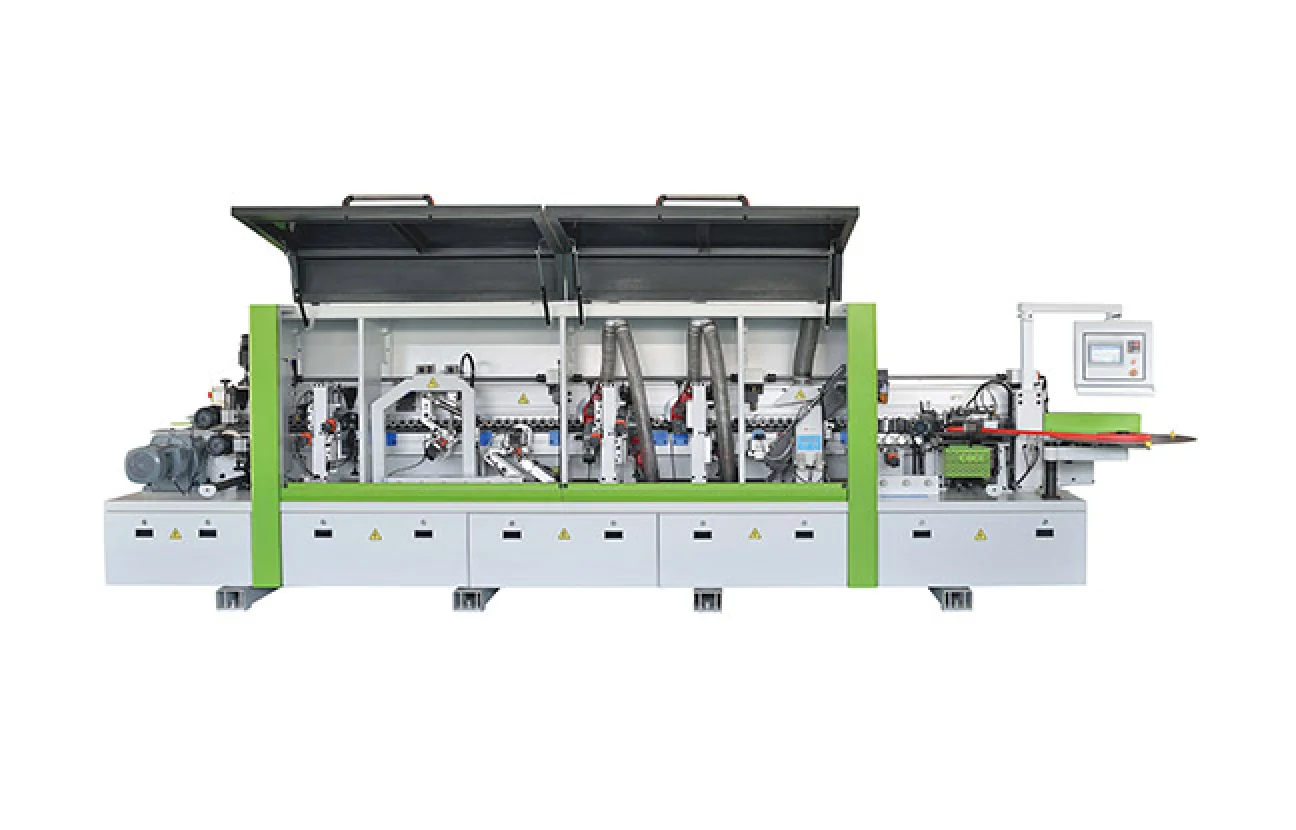

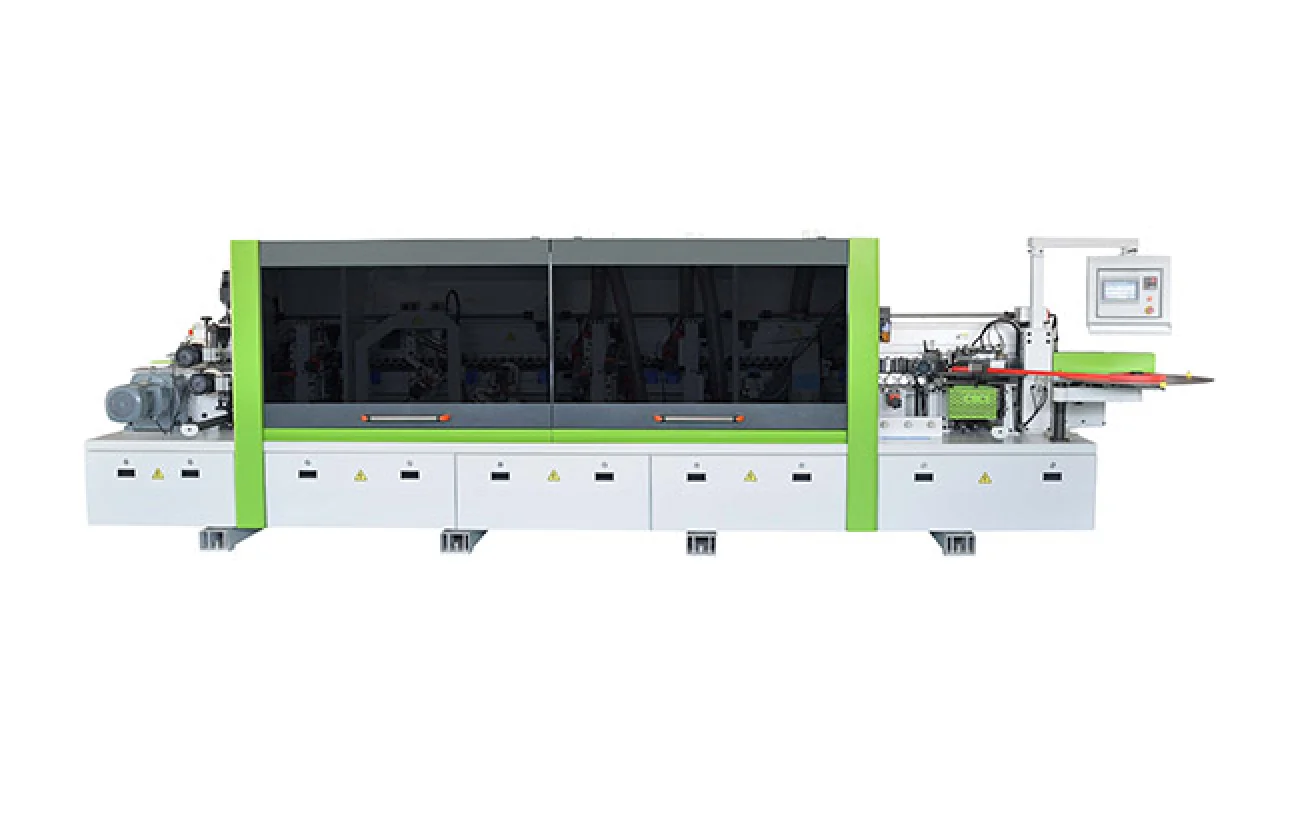

Edge Bander

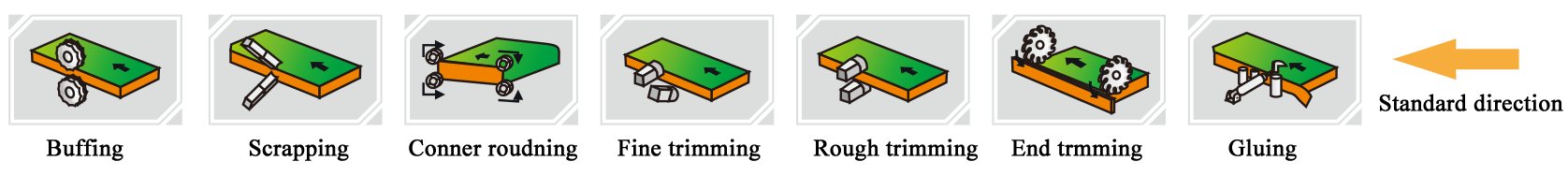

● Edge bander ZD450C has 7 functions
● Edge bander power IS 10.6kw
● Edge banding tape thickness is 0.4-3 mm
● Edge bander working thickness is 10-60 mm
● Customizable, OEM & ODM
Specifications | ZD450C |
Working pressure: | 0.6MPa; |
Total power: | 10.6kw; |
Feeding speed: | 12-23m/min; |
Electric lifting: | 0.37kw/pc; |
Panel thickness: | 10-60mm; |
Panel length: | Min. 150mm； |
Panel width： | Min. 60mm； |
Edge thickness： | 0.4-3mm； |
Overall size： | 5670*900*1590mm |
TAIWAN Shihlin brand PLC & touch screen control panel. 4 sizes edge type thickness options on the control panel. (This function is optional)
The encoder replaces the limit switch, which is more accurate and stable. There is a gap in the limit switch, the spring will be broken after some time, the encoder solves this problem very well.

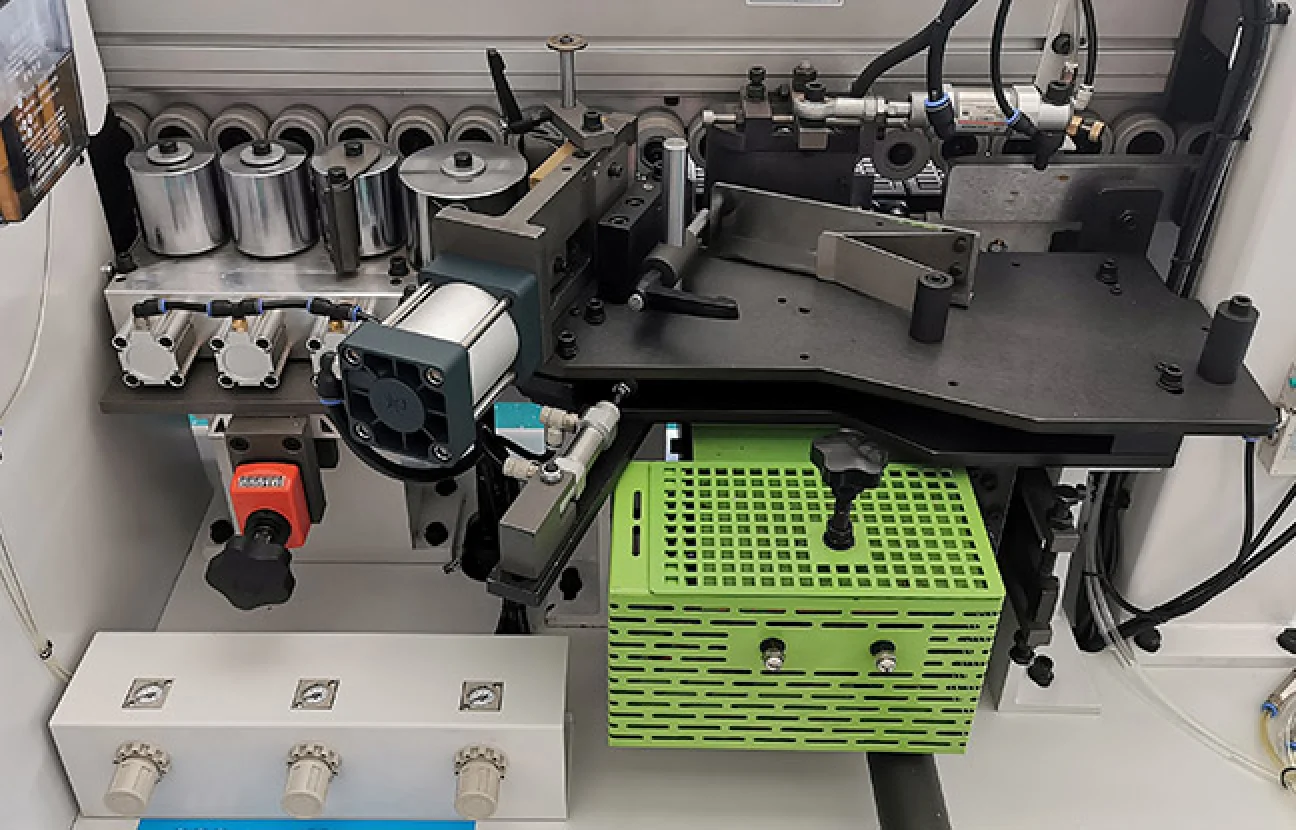

Nonstick material glue pot, easy to clean. Board preheating part, better gluing effect.
Press roller has the function of scraping glue. If the board is not placed properly, or if the edge banding tape is missing, the glue will stick to the pressure roller, which is difficult to clean. Our pressure roller's glue scraping function avoids this kind of trouble.

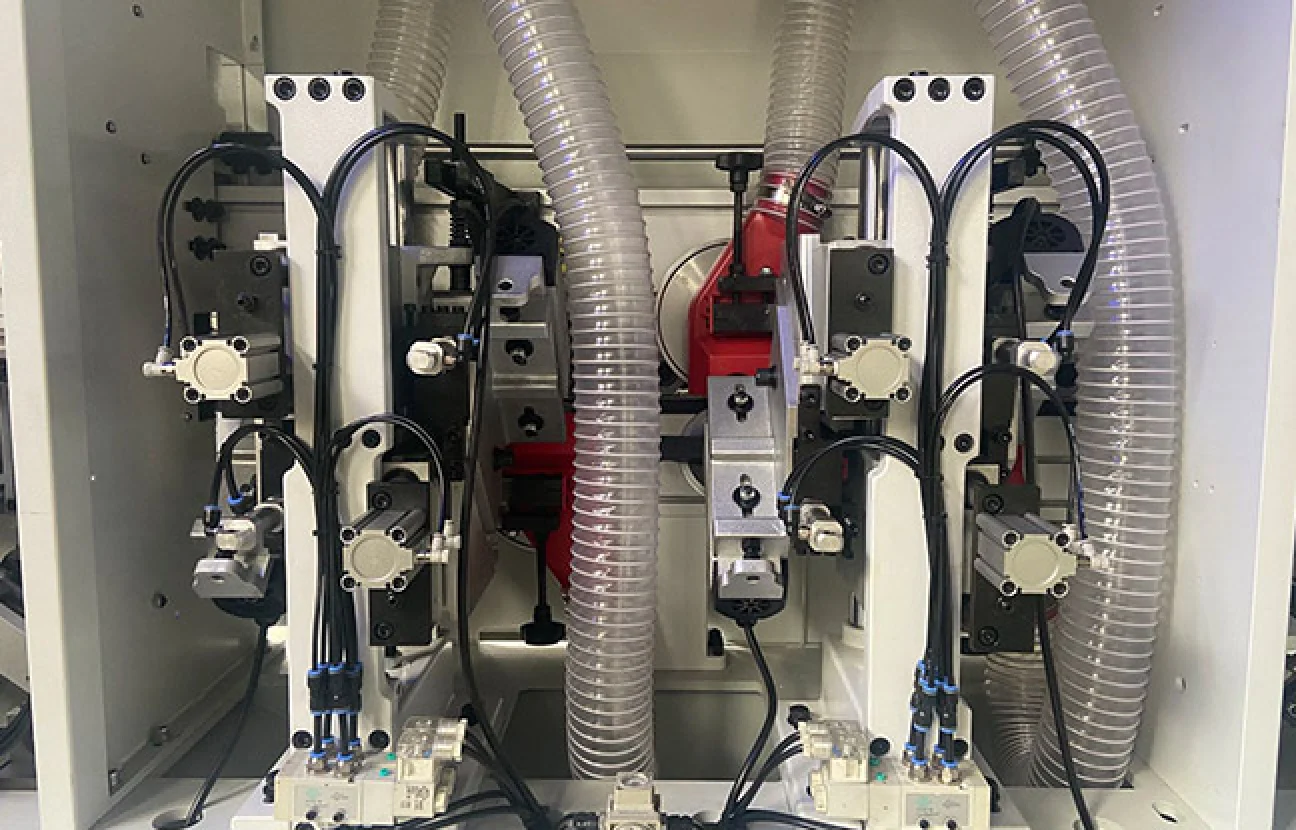

Fine/rough trimming mechanism adopts automatic tracking and high frequency motor to ensure the trimming plates smoothly.

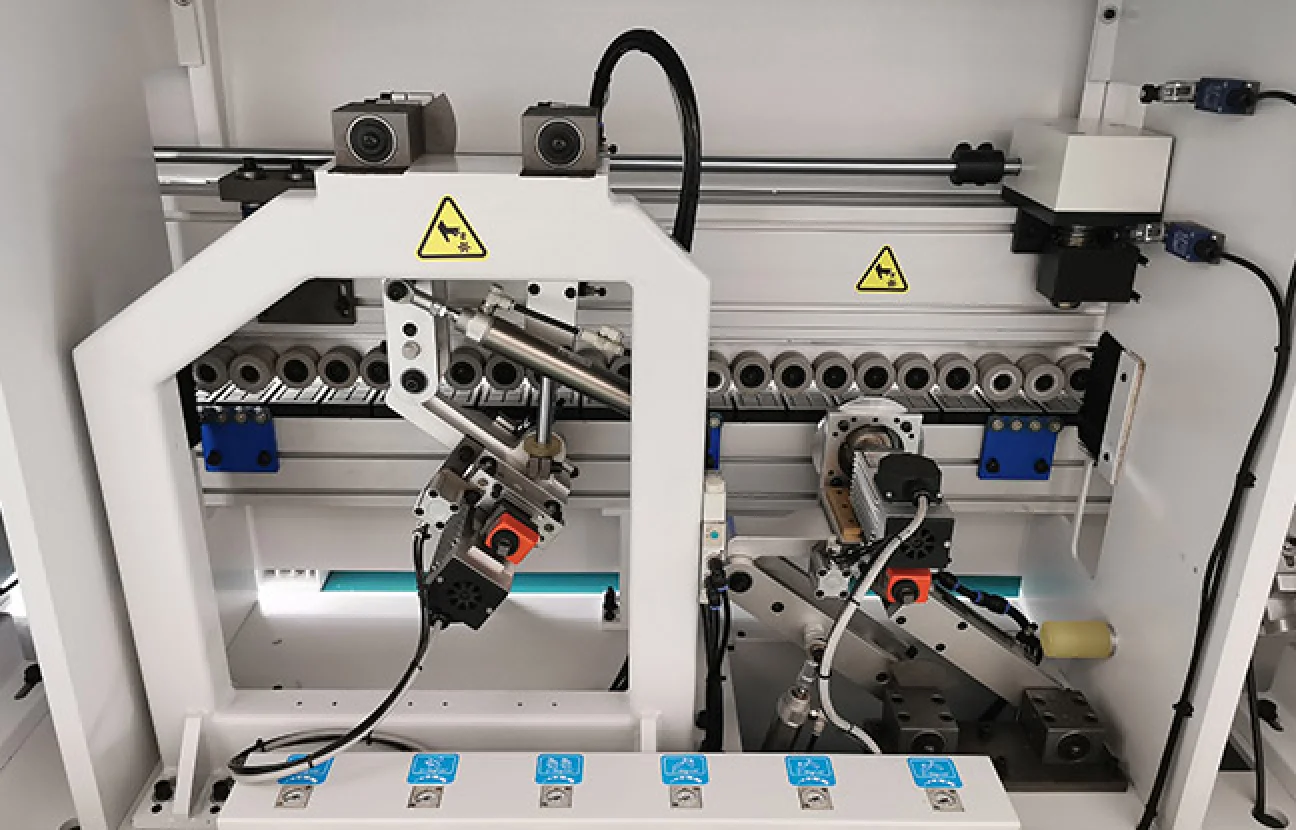

Corner Rounding mechanism with two high precision tracking motor to make sure high tracking speed and high trimming speed.
